Apevia ITX-PFC500W Mini ITX/Flex ATX / 1U 500W Fully Modular Power Supply, Full Range Active PFC 90-264V, AC for POS AIO System Desktop Gaming Server Small Form Factor (Flex ITX) Computer PSU

Fully Modular Power Supply: Standard Mini-ITX / FLEX ATX type. Full Range Active PFC 90-264V. Maximum Power: 500W.
Connectors: 1 x 20+4pin Main Power, 1 x 8pin 12V(P4+4), 2x 6+2 PCIE, 2 x SATA, 2 x 4pin Molex

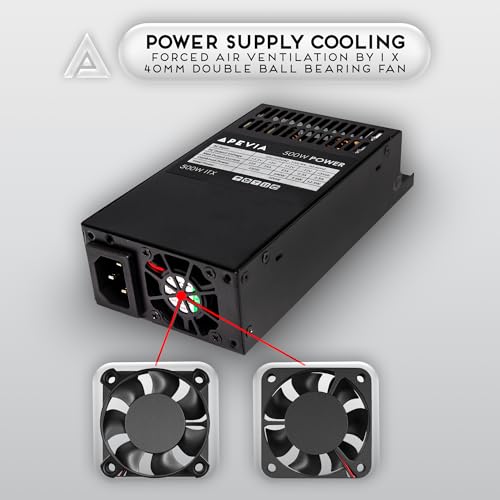

Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan. Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)

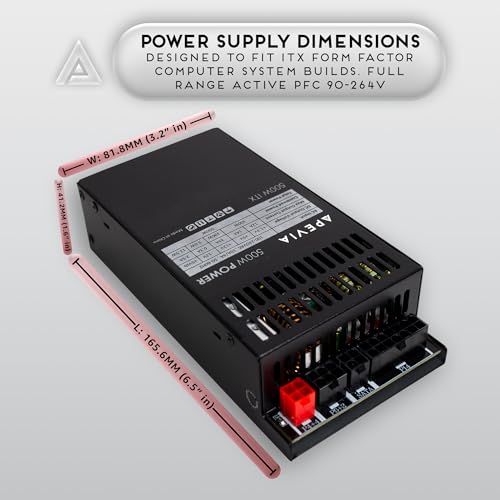

Dimension: 160mm x 73.66mm x 35.5mm (6.3" x 2.9" x 1.4") – L x W x H
Output: +3.3V@12A, +5V@14A, +12V@33A, [email protected], [email protected]
IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
